Product details

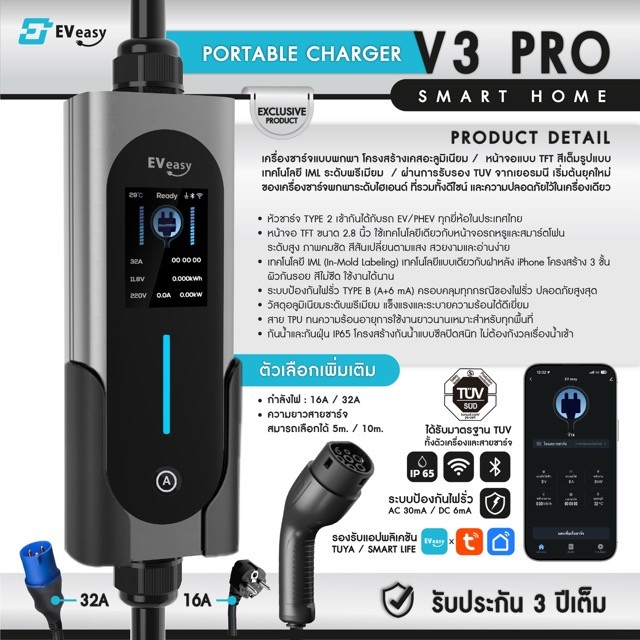

EV Easy V3 PRO – Portable Smart Home Charger
A smart portable EV charger with a premium aluminium body.

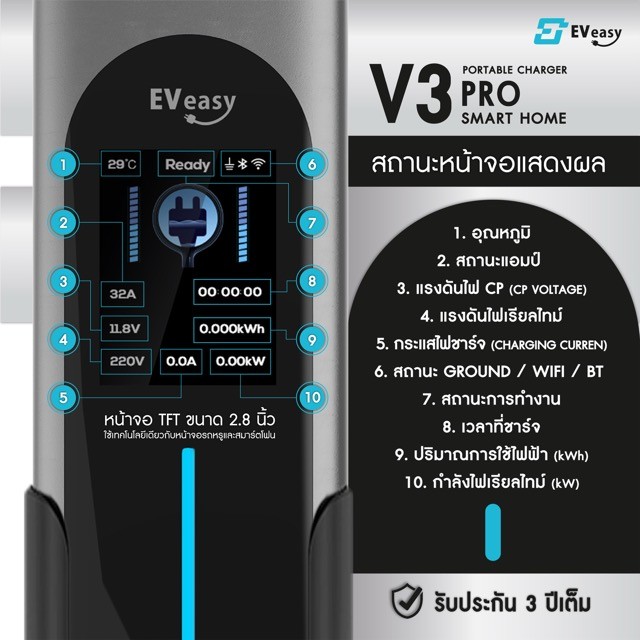

A 2.8-inch TFT display shows every reading (voltage, current, temperature, time, kWh, kW).

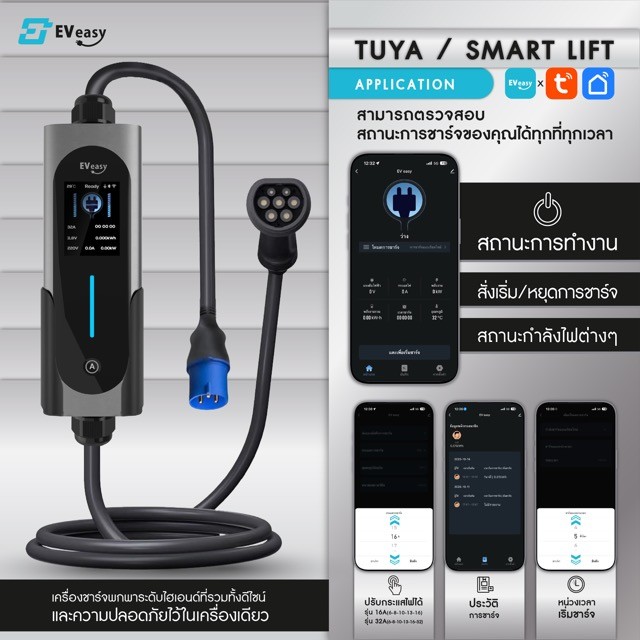

Works with the EVEASY x TUYA/Smart Life app for control from your phone (iOS / Android).
Switch the current between 16 A and 32 A, schedule a charging start time, and view your charging history.

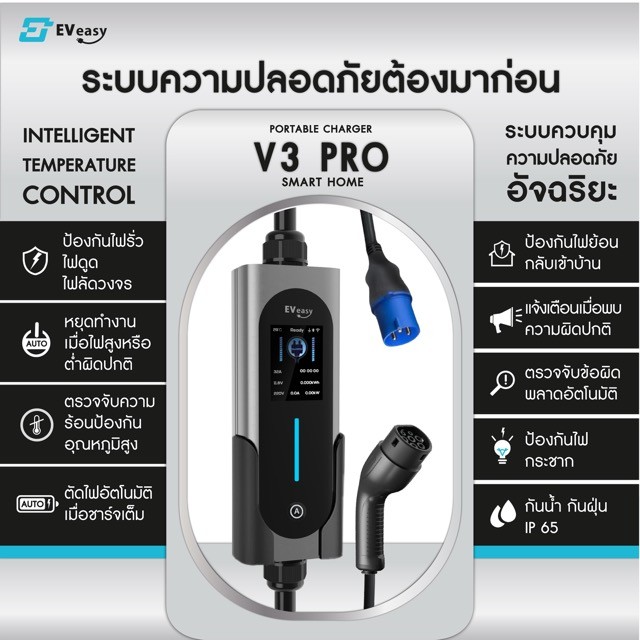

Complete protection
- Protection against reverse current, leakage current and overvoltage
- Heat detection / automatic cut-off when charging is complete
- On-screen alerts when a fault is detected
Rugged aluminium housing, water and dust resistant to IP65.
Type 2 connector — works with EVs and PHEVs of all brands in Thailand.
Certified to the TUV SUD (Europe) safety standard.
Options and prices
| Option | Power | Cable length | Price |
|---|---|---|---|
| 3.6 kW · 5 m cable | 3.6 kW | 5 m | THB 9,900 |
| 3.6 kW · 10 m cable | 3.6 kW | 10 m | THB 10,900 |
| 7.4 kW · 5 m cable | 7.4 kW | 5 m | THB 11,900 |
| 7.4 kW · 10 m cable | 7.4 kW | 10 m | THB 12,900 |
Specifications
| Dust and water protection rating | IP65 |
|---|---|
| Connector standard | IEC 62196-2 |
| Screen size | 2.8 inch |
| Leakage protection | Leakage protection AC 30mA / DC 6mA |
| Charging cable standard | TPU, TUV standard |
| Supported app | EVEASY x TUYA/Smart Life |
| Values shown on screen |
|
| Screen and front panel | IML (In-Mold Labeling) screen surface |
| Connectivity | WIFI / Bluetooth |
| Screen type | TFT |
| Selectable current | 16 A / 32 A |
| Dimensions | 22.5 × 7.5 × 5.3 cm |
| Connector material | TPE |
| Available cable lengths | 5 / 10 m |
| Model | V3 Pro |
| Maximum charging power | 3.6kW(1P) / 7.4kW (1P) |
| Connector type | Type2 (IEC 62196-2 standard) |
| Input supply | 220V 16A (1P) / 220V 32A (1P) |
| Operation modes | Mobile App , Plug & Play |
| Charging methods | Auto Start, App Start |
| Power supply | 3.6 kW · 1-phase · breaker 16 A / 7.4 kW · 1-phase · breaker 32 A |
| Warranty | 3 years |
The power supply and breaker size in the “Power supply” row are calculated from Thai electrical requirements (230 V per phase), not values declared by the manufacturer · our technicians survey your electrical system again before installation.
Manufacturer data sheets
Everything on these sheets is already in the table above as text you can search and read aloud.
